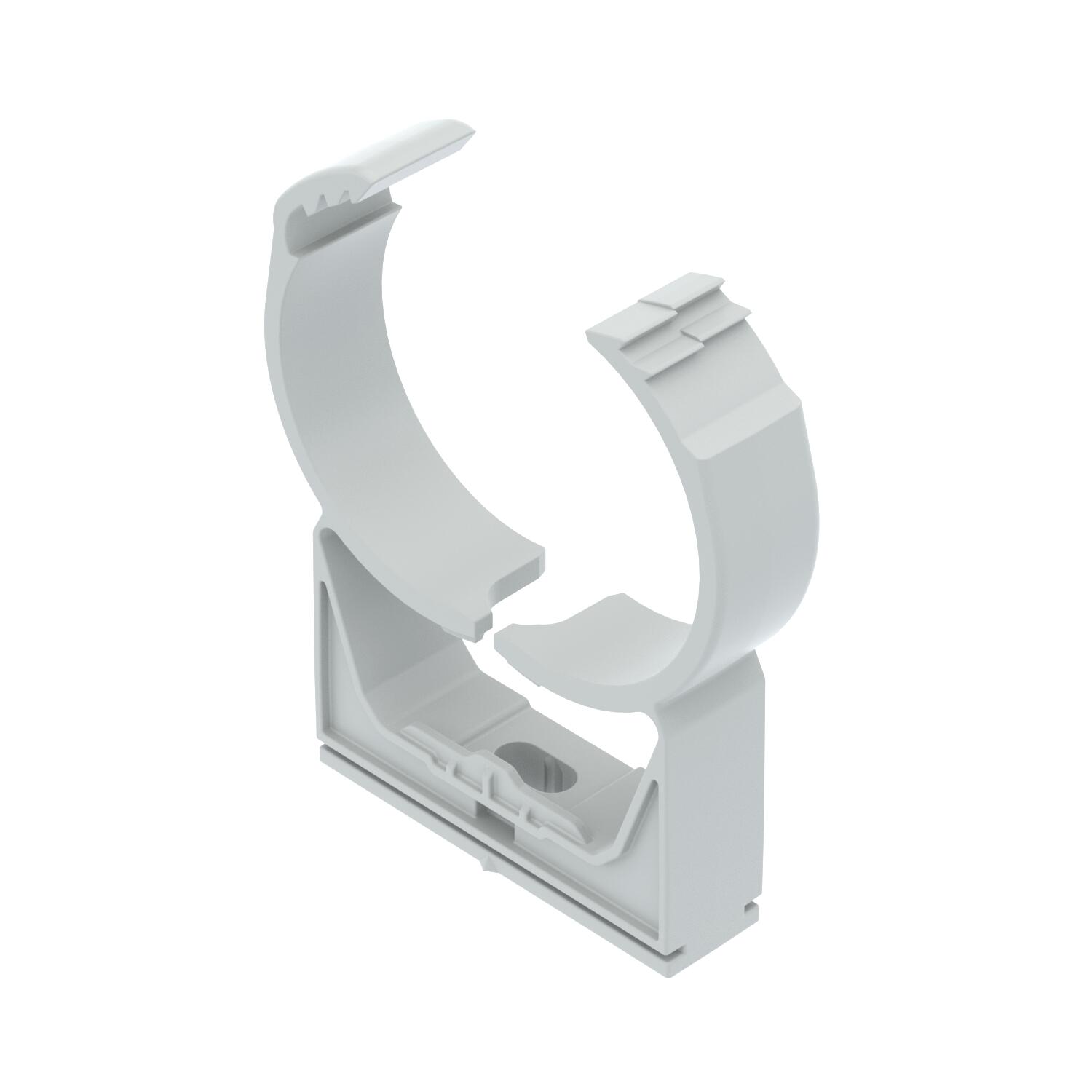

proQuick clip, light grey

Réf. 2147326 | EAN 4012197396701

Revenir à la vue d'ensemble
Description du produit
Description du produit
Highly stressable clip for accepting plastic or metal electrical and sanitary pipes as well as the electrical installation pipe Quick pipe. Universal fastening options on walls, ceilings and steel constructions, both indoors and outdoors. Flexible clamping range of several millimetres. Toolless pipe mounting. Connectable to each other to Ø 32 mm, also with the OBO Quick or Multi Quick clip. For variable distances and clip quantity mountable on a profile rail.
  • Fédération allemande des industries de l'éléctronique et de l'ingénierie de l'information
  • sans halogène ; sans chlore, fluor et brome
  • RÉSISTANT AUX UV
  • Communautés Européennes, CE Déclaration de conformité selon directives CE
  • Filetage, métrique
Caractéristiques techniques

Caractéristiques techniques

Avec garniture non
Charge de rupture 1,4 kN
Coloris gris clair; RAL 7035
Diamètre de câbles/tubes max. 55 mm
Diamètre de câbles/tubes min. 48 mm

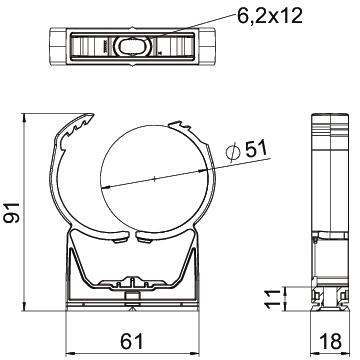

Dimension 48-55mm
Dimension nominale/Texte 50-54
Fermé oui
Juxtaposable oui
Matériau polyamide
Nombre de câbles/tubes 1
Plage de serrage D max. 55 mm
Plage de serrage D min. 48 mm
Plage de températures d’utilisation max. 60 °C
Plage de températures d’utilisation min. -15 °C
Résistant aux UV oui
Sans halogène oui
Type de fixation Trou de vis
Tous les types

Tous les types

Type Dimension nominale/Texte Réf. Quantité Plus petite unité de vente Prix de tarif TVA excl.
PQ-10 LGR 10 2147302
100 Pièce 54,25 CHF Prix / 100 Pièce
PQ-12 LGR 12-14 2147304
100 Pièce 69,51 CHF Prix / 100 Pièce
PQ-15 LGR 15-16 2147306
100 Pièce 71,10 CHF Prix / 100 Pièce
PQ-17 LGR 17-19 2147308
100 Pièce 74,98 CHF Prix / 100 Pièce
PQ-20 LGR 20-23 2147310
50 Pièce 84,04 CHF Prix / 100 Pièce
PQ-25 LGR 25-28 2147312
50 Pièce 118,85 CHF Prix / 100 Pièce
PQ-28 LGR 28-32 2147314
50 Pièce 120,90 CHF Prix / 100 Pièce
PQ-32 LGR 32-35 2147316
50 Pièce 142,10 CHF Prix / 100 Pièce
PQ-36 LGR 35-40 2147318
25 Pièce 164,40 CHF Prix / 100 Pièce
PQ-40 LGR 40-44 2147320
25 Pièce 191,80 CHF Prix / 100 Pièce
PQ-47 LGR 45-50 2147324
25 Pièce 219,30 CHF Prix / 100 Pièce
PQ-51 LGR 50-54 2147326
15 Pièce 292,20 CHF Prix / 100 Pièce
PQ-59 LGR 59-65 2147328
15 Pièce 310,60 CHF Prix / 100 Pièce
